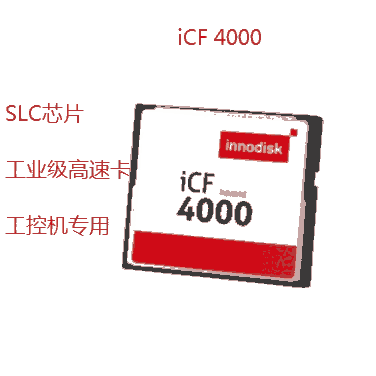

全新工業級CF卡 iCF4000 512m 存儲卡 DC1M-512D31C1SB

產品特色

1. iSMART disk health monitoring

2. Intelligent error recovery system

3. Excellent data transfer speed

4. Mechanical design for anti-vibration

概述：

The Innodisk Industrial CompactFlash 4000 Memory Card (iCF 4000) products provide high capacity solid-state flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

innodisk industrial compactflash 4000存儲卡（ICF 4000）產品提供高容量固態閃存，符合與IDE磁盤驅動器電氣兼容的真實IDE模式。原始的CF格式卡可用于任何具有CF插槽的系統。

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash 4000 Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial work place. The Industrial CompactFlash? features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash? 4000 (iCF 4000) support advanced PIO (0-6), Multiword DMA (0-2), Ultra DMA (0-4) transfer mode, multi-sector transfers, and LBA addressing.

InnoDisk Industrial CompactFlash 4000存儲卡旨在取代傳統的旋轉磁盤驅動器，是用于移動計算和工業工作場所的嵌入式固態數據存儲系統。Industrial CompactFlash?具有極其輕量、可靠、低調的外形。Industrial CompactFlash?4000（ICF 4000）支持高級PIO（0-6）、多字DMA（0-2）、超DMA（0-4）傳輸模式、多扇區傳輸和LBA尋址。

規格：
名稱： iCF 4000
協議： PATA
芯片： SLC
容量： 128MB~8GB
通道： 2
讀寫速度 R/W (MB/sec, max.)： 40/20
功耗： 0.73W(5V x 145mA)? ?，0.42W(3.3V x 125mA)
H/W Write Protect： Optional
ATA Security： Y
S.M.A.R.T.： Y
尺寸 (WxLxH/mm)： 42.8 x 36.4 x 3.3
振動： 20G@7~2000Hz
沖擊： 1500G@0.5ms
MTBF： >3 million hours
Storage Temperature： -55°C ~ +95°C
Operation Temperature
標準 溫度: 0°C ~ +70°C;
工業 溫度: -40°C ~ +85°C
產品料號：

(0°C ~ +70°C)?

DC1M-128D31C1SB?

DC1M-256D31C1SB?

DC1M-512D31C1SB?

DC1M-01GD31C1DB?

DC1M-02GD31C1DB?

DC1M-04GD31C1DB?

DC1M-08GD31C1DB

Industrial Grade

(-40°C ~ +85°C)?

DC1M-128D31W1SB?

DC1M-256D31W1SB?

DC1M-512D31W1SB?

DC1M-01GD31W1DB?

DC1M-02GD31W1DB?

DC1M-04GD31W1DB?

DC1M-08GD31W1DB
